Single seat woods buggy

**MASCMAN** · 12-22-2015 02:53 PM

Originally Posted by Ironleath5

Well it looks like I have the track width set around 52 to 54 inches wich should be pretty good for trail riding. Does anyone know the max angle for the s10 cv's?

Did this ever get finished?

Does anyone know where he got those S10 flanges? They look beefy!

**Ironleath5** · 12-29-2015 07:59 AM

I have made almost no progress since last post... I spend a lot of time working away from home..
But to answer the question I made the flanges. My son and I have a goal to get this thing done by end of June for a family reunion.

**Ironleath5** · 01-10-2016 07:46 PM

Made some progress this weekend. We got the trailing arms figured out and was able to cut the plates and drill the bolt holes for the s-10 hub mount. I'm gonna make up a jig this week to fab up the trailing arms.
I'm planning on running the arms at 8 degrees and they should be about 28" long. I believe the overall track width should finish out between 58-60.

**MASCMAN** · 01-10-2016 10:46 PM

You should make up some of those s10 flanges...I know some people who would like some!

**Ironleath5** · 01-11-2016 04:32 AM

Which ones, inboard or outboard

**MASCMAN** · 01-11-2016 03:44 PM

Originally Posted by Ironleath5

Which ones, inboard or outboard

I would think either...how are they mounted to your carrier?

**Ironleath5** · 01-11-2016 04:16 PM

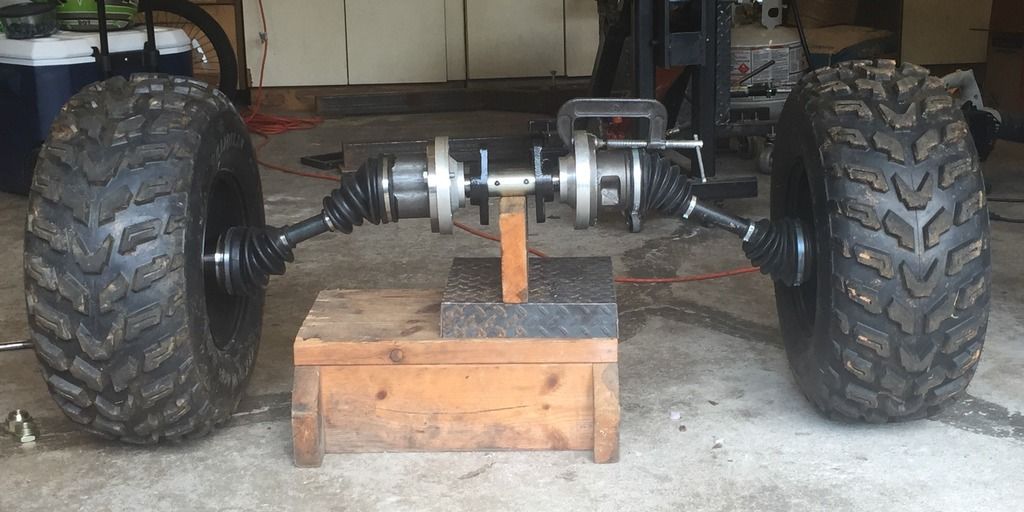

I cut a key way into them and drill and tap the 1" shaft for a retaining bolt.
But what I was asking is if you wanted a flange for the trailing arms of the carrier

**MASCMAN** · 01-12-2016 03:46 PM

Carrier...

**Ironleath5** · 01-13-2016 07:04 PM

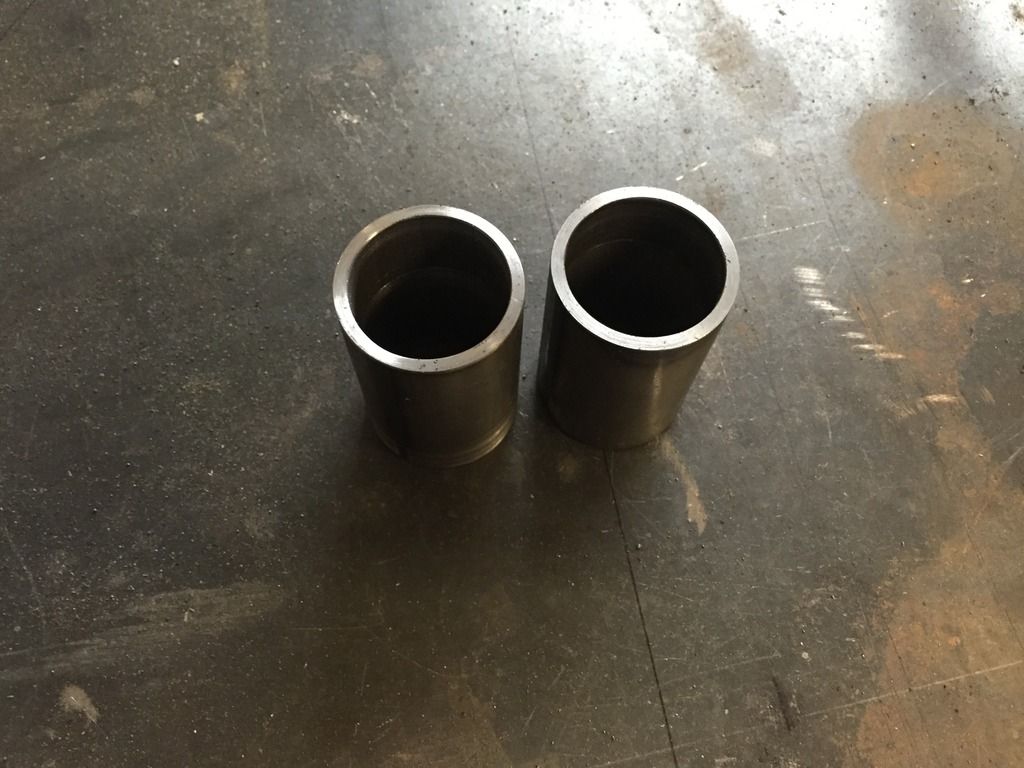

Made the trailing arm jig tonight and cut and machined the bushing tubes. I should be getting a chunk of derlin tomorrow for the bushings. I have never made them before but I plan on turning them down to fit inside the 1 1/2 .120 wall bushing tubes with a .25" shoulder.

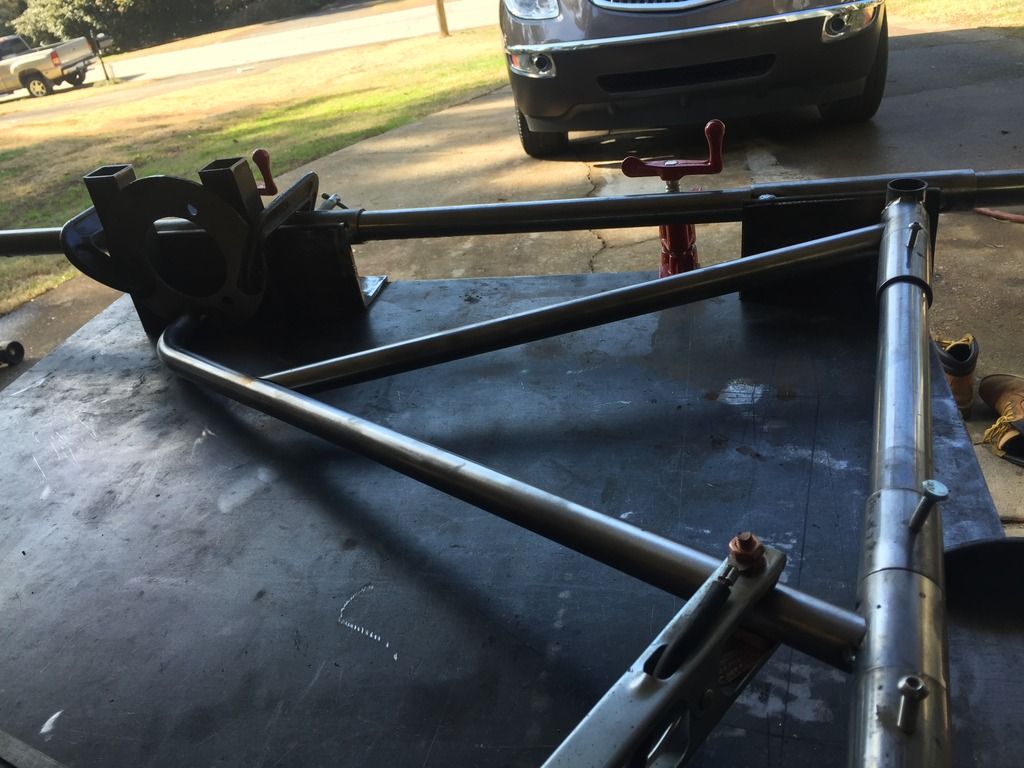

I made the trailing arm jig adjustable for length width and angle

**Ironleath5** · 01-17-2016 02:05 PM

Made a little progress this weekend not as much as I wanted to because I only had today to do some work

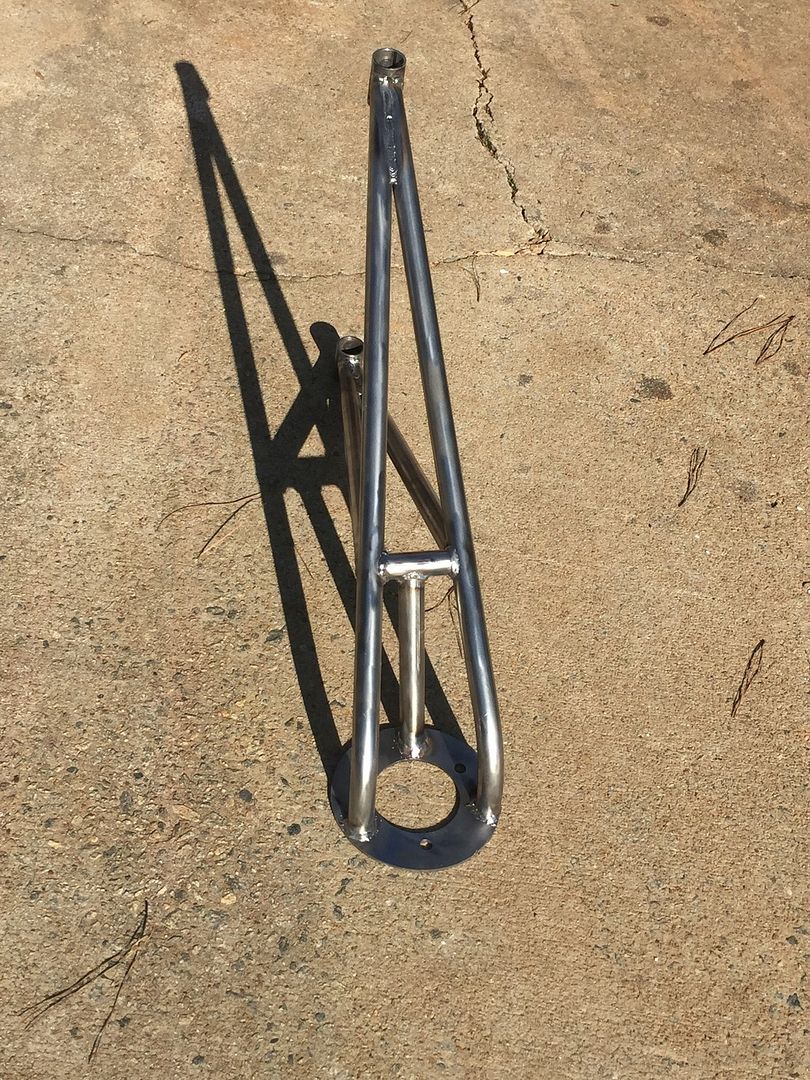

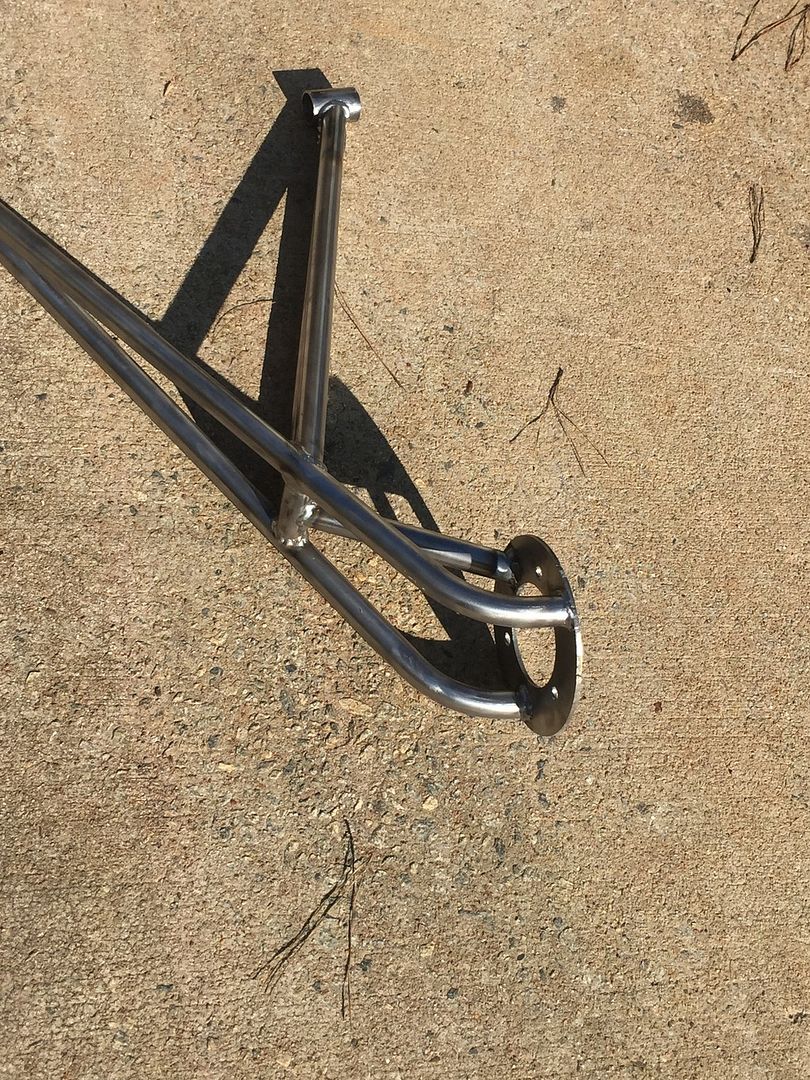

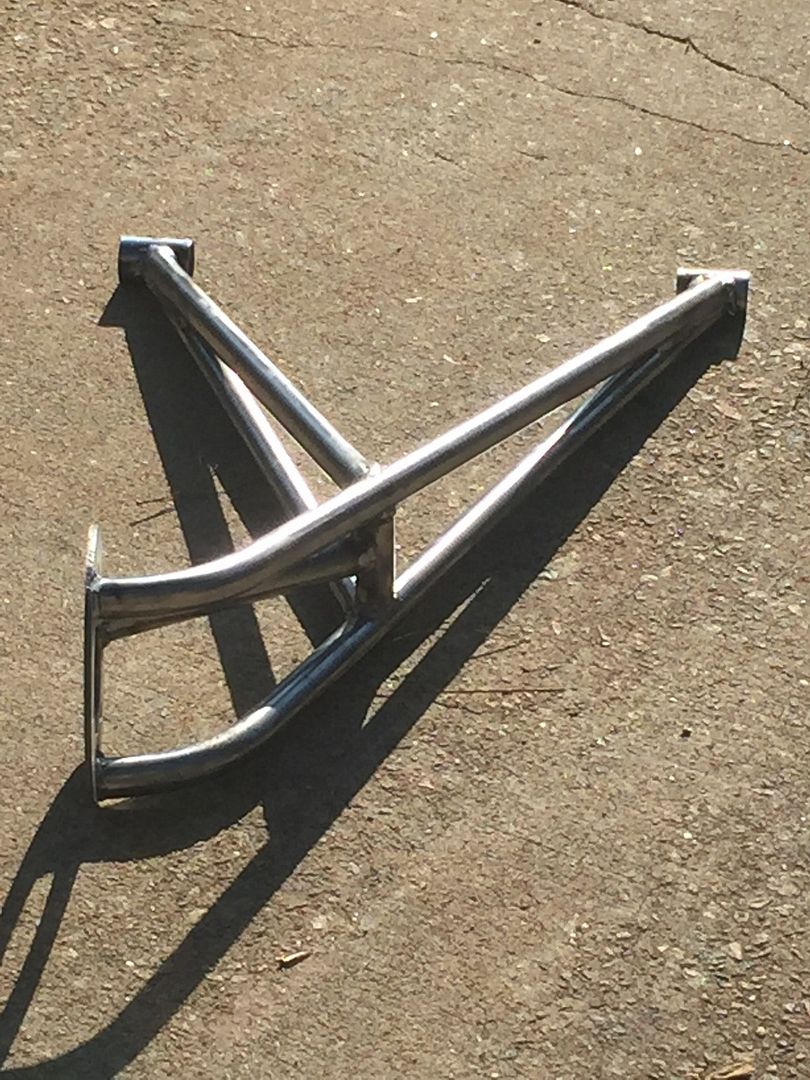

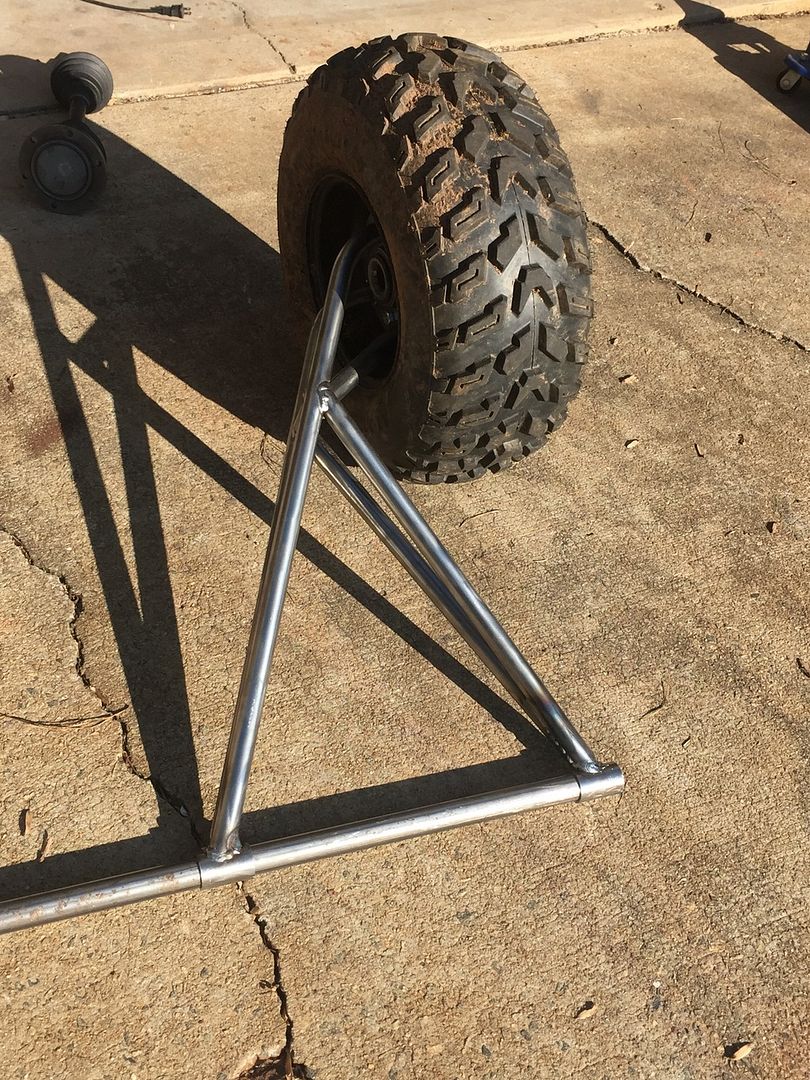

Made 1 semi trailing arm, got some pics here.

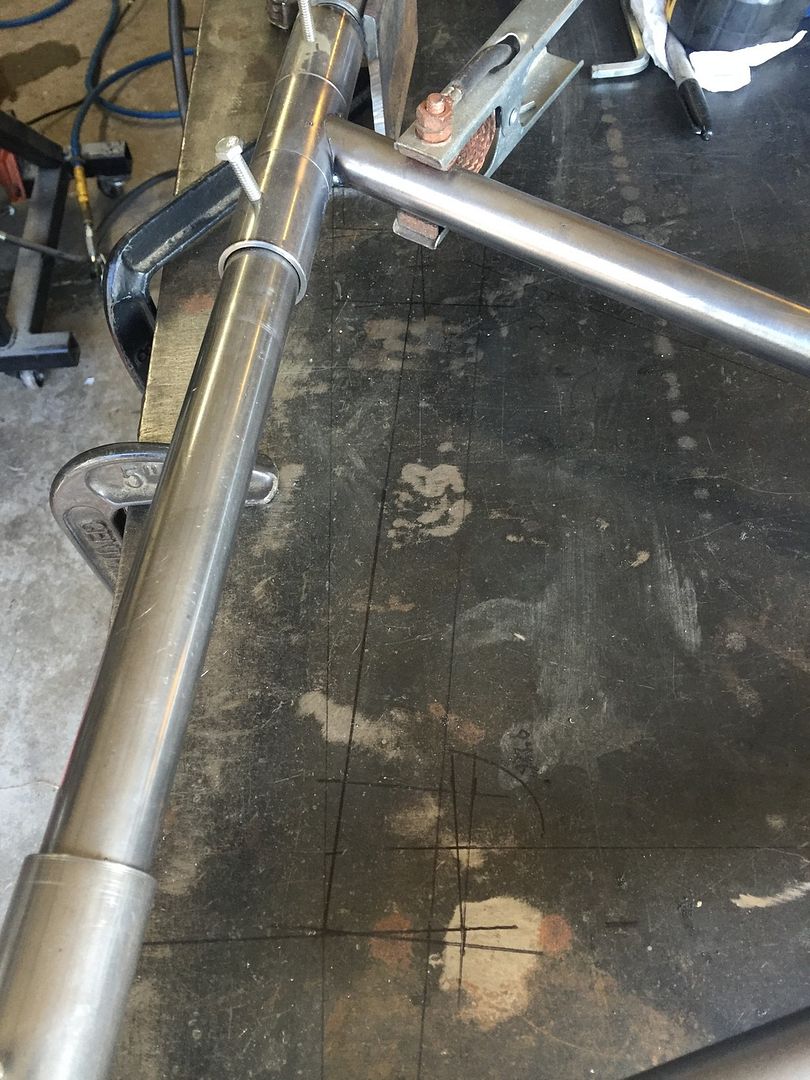

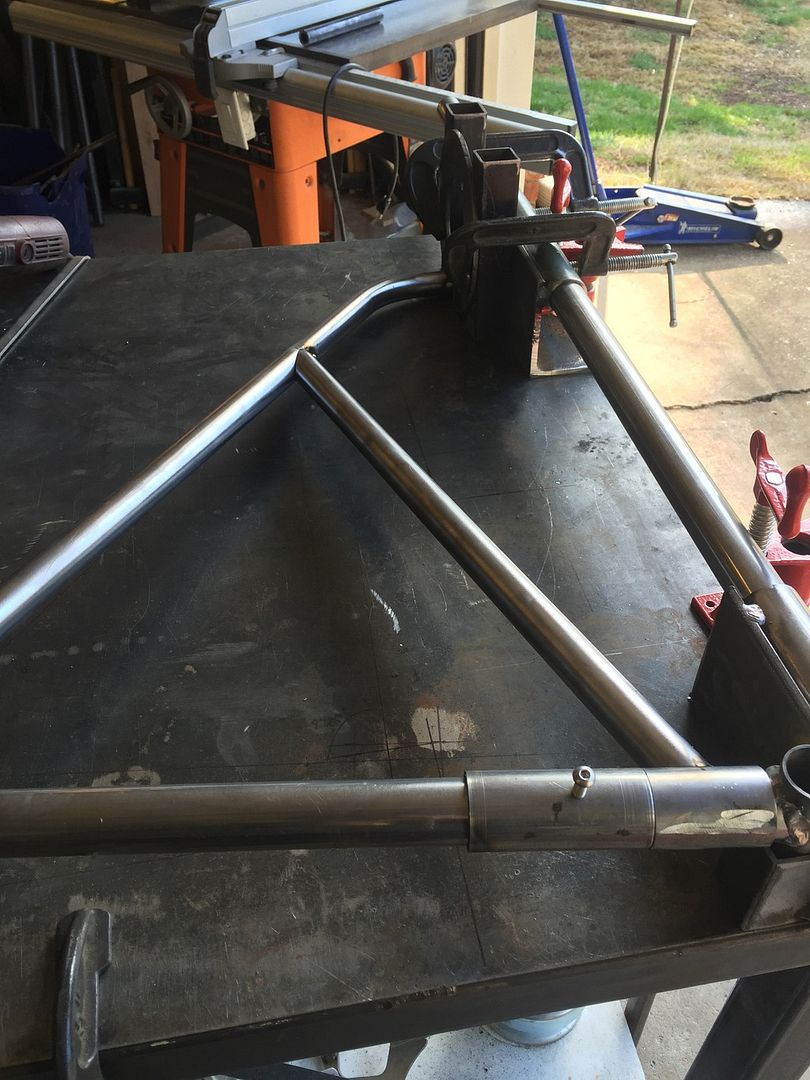

I made the jig out of 1 1/4 tube and used 1 1/2 120 wall tube for the bushing sleeves which slide over the 1 1/4 real nice and holds everything straight. Arm has a 8 degree angle on it and measures 20 inches from outside of sleeve to outside of sleeve and has a 28" from center of bushing to center of hub. Got everything bent and cut to make the next one shouldn't take as long..
This stuff always takes way longer than you think..
